Electrical switchboards and panels.
Service to sub-panel. Pick a product for its specs, or send your plans and we read every line.
Get a quote
Panels and switchboards
Service switchboard, 600 A, with utility meter section
600 A main breaker, 400 to 800 A frame · 480Y/277 V or 208Y/120 V, 3-phase 4-wire
View specs
Panels and switchboards
Distribution panelboard, 400 A, 480Y/277 V
400 A main breaker or main lugs · 480Y/277 V, 3-phase 4-wire
View specs
Panels and switchboards
Branch panelboard, 225 A, 208Y/120 V, 42 circuit
225 A main breaker · 208Y/120 V, 3-phase 4-wire
View specsGet a panels and switchboards quote.
Send your plans or your list. Back line by line in 3 business days.
×
Panels and switchboards

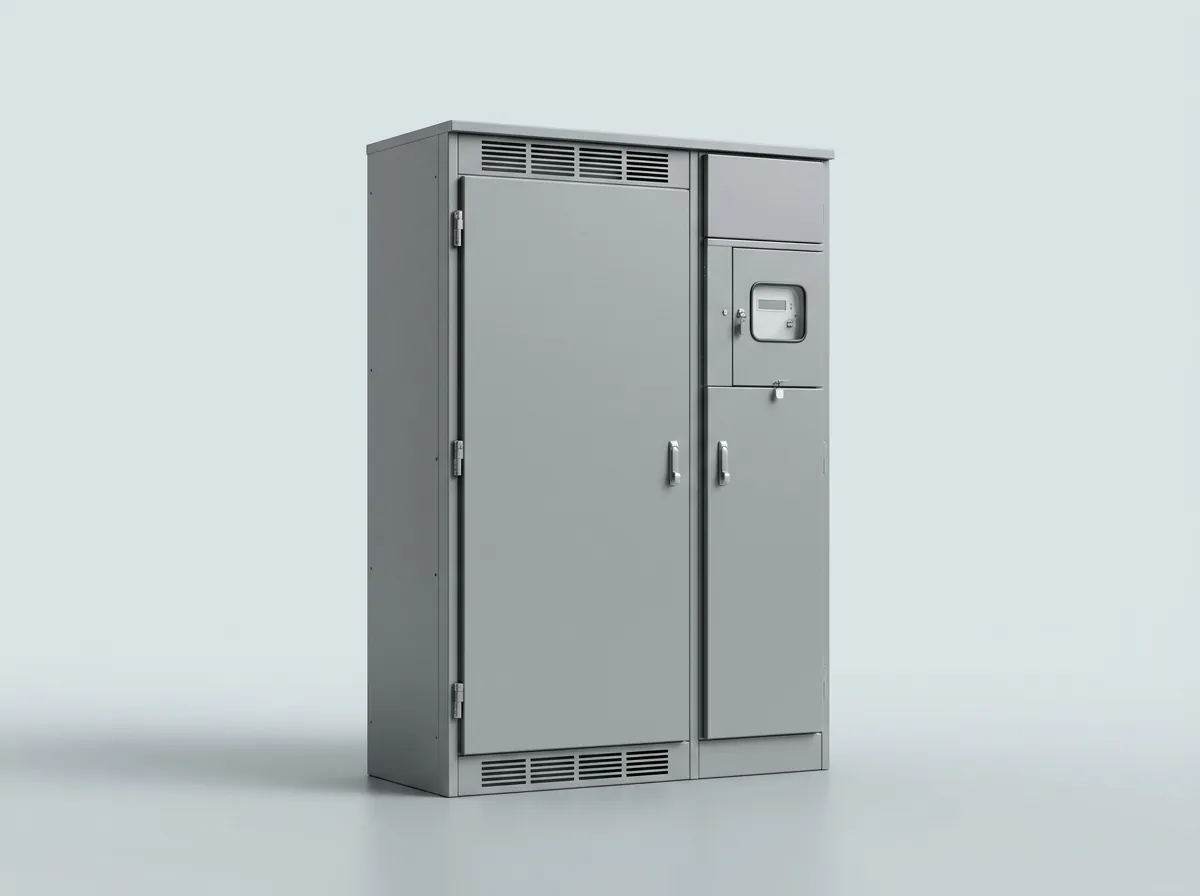

Service switchboard, 600 A, with utility meter section
Main service gear. Holds the utility meter and the main breaker outdoors.
Rating600 A main breaker, 400 to 800 A frame
Voltage480Y/277 V or 208Y/120 V, 3-phase 4-wire
MeteringBarriered utility meter section, EUSERC
EnclosureNEMA 3R outdoor
Short circuit35 kA (claim); higher on request
ListingUL 891, service entrance
DeliveryDated to its build stage. You pay as it lands. Ships with warranty.
×
Panels and switchboards

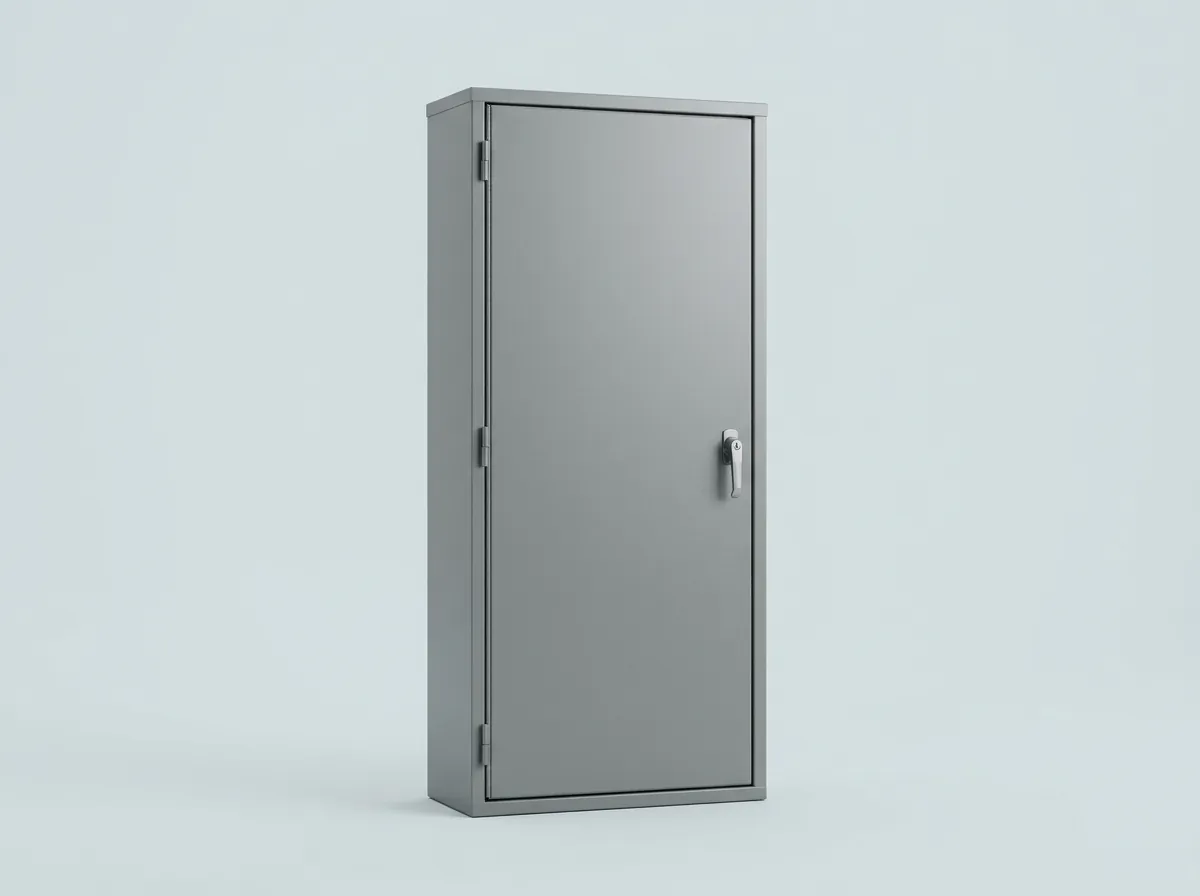

Distribution panelboard, 400 A, 480Y/277 V
Splits 480 volt power to lighting, HVAC and step-down transformers.
Rating400 A main breaker or main lugs
Voltage480Y/277 V, 3-phase 4-wire
Circuits42 spaces, bolt-on breakers
EnclosureNEMA 1 indoor; NEMA 3R option
Short circuit35 to 65 kA by breaker (claim)
ListingUL 67
DeliveryDated to its build stage. You pay as it lands. Ships with warranty.
×
Panels and switchboards

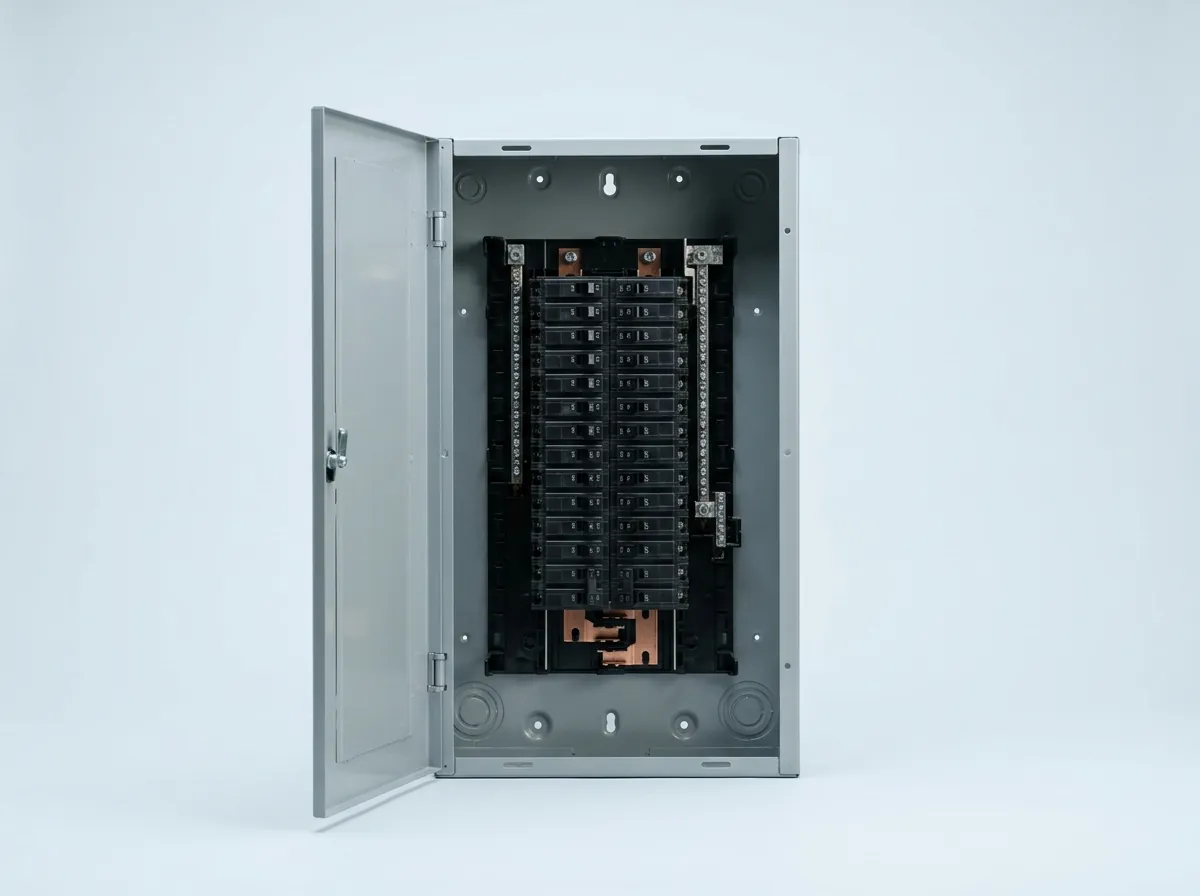

Branch panelboard, 225 A, 208Y/120 V, 42 circuit
The sub-panel. Feeds lights and outlets from a step-down transformer.
Rating225 A main breaker
Voltage208Y/120 V, 3-phase 4-wire
Circuits42 spaces
BusAluminum; copper option
Short circuit10 kA standard; 22 kA option
ListingUL 67
DeliveryDated to its build stage. You pay as it lands. Ships with warranty.
