Dry-type transformers.
Indoor, 600 V and under. Pick a product for its specs, or send your plans and we read every line.
Get a quote
Dry-type transformers
Dry-type transformer, 45 kVA, three-phase
45 kVA, three-phase, 60 Hz · 480 V delta to 208Y/120 V
View specs
Dry-type transformers
Dry-type transformer, 75 kVA, three-phase
75 kVA, three-phase, 60 Hz · 480 V delta to 208Y/120 V
View specs
Dry-type transformers
Dry-type transformer, 150 kVA, three-phase
150 kVA, three-phase, 60 Hz · 480 V delta to 208Y/120 V
View specsGet a dry-type transformers quote.
Send your plans or your list. Back line by line in 3 business days.
×
Dry-type transformers

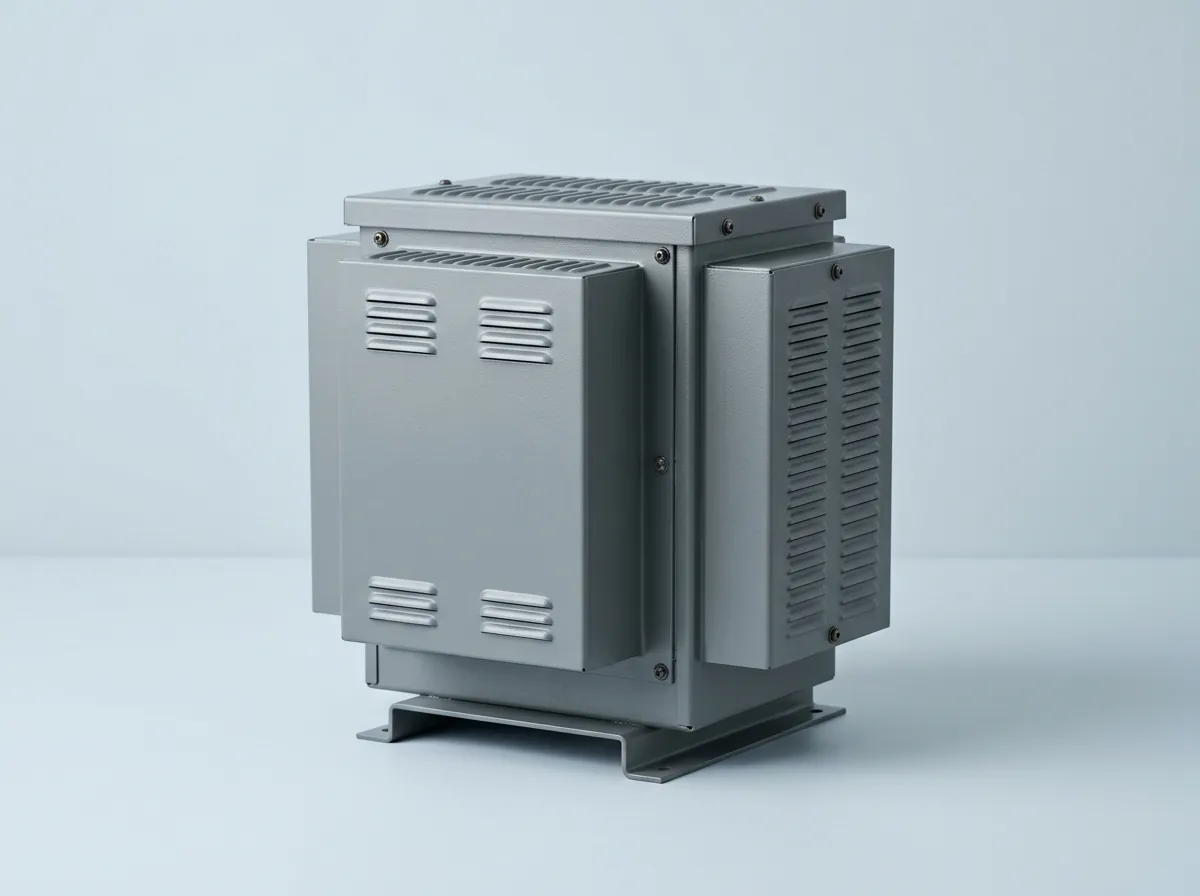

Dry-type transformer, 45 kVA, three-phase
Small step-down unit for one tenant floor or a few 208 V loads.
Rating45 kVA, three-phase, 60 Hz
Voltage480 V delta to 208Y/120 V
Insulation220 C class, 150 C rise
EnclosureVentilated indoor; NEMA 3R with weather shield
Efficiency98.40 at 35 percent load (DOE 2016)
Sound45 dB max (NEMA ST 20)
ListingUL 1561
DeliveryDated to its build stage. You pay as it lands. Ships with warranty.
×
Dry-type transformers

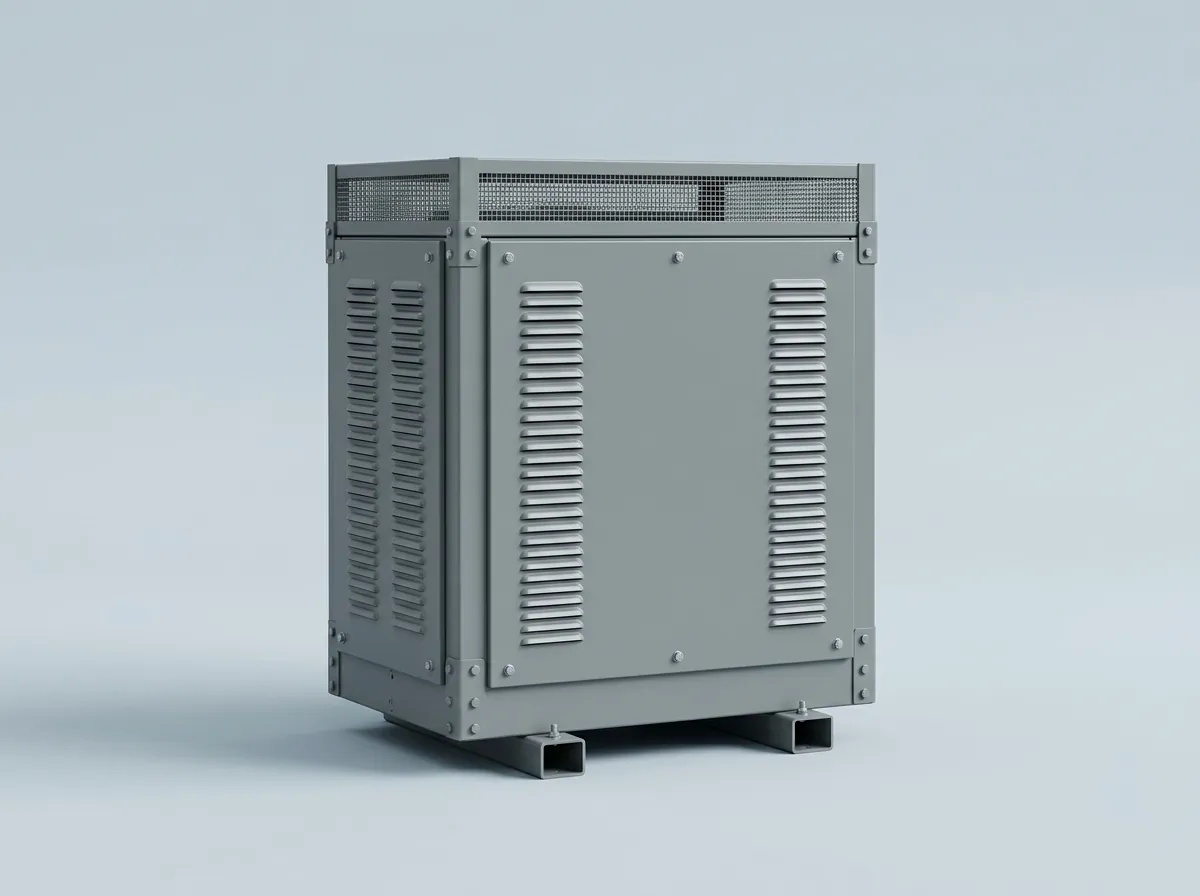

Dry-type transformer, 75 kVA, three-phase
The common size. Feeds a 225 amp, 208 volt panel from 480 volt power.
Rating75 kVA, three-phase, 60 Hz
Voltage480 V delta to 208Y/120 V
Insulation220 C class, 150 C rise
EnclosureVentilated indoor; NEMA 3R with weather shield
Efficiency98.60 at 35 percent load (DOE 2016)
Sound50 dB max (NEMA ST 20)
ListingUL 1561
DeliveryDated to its build stage. You pay as it lands. Ships with warranty.
×
Dry-type transformers

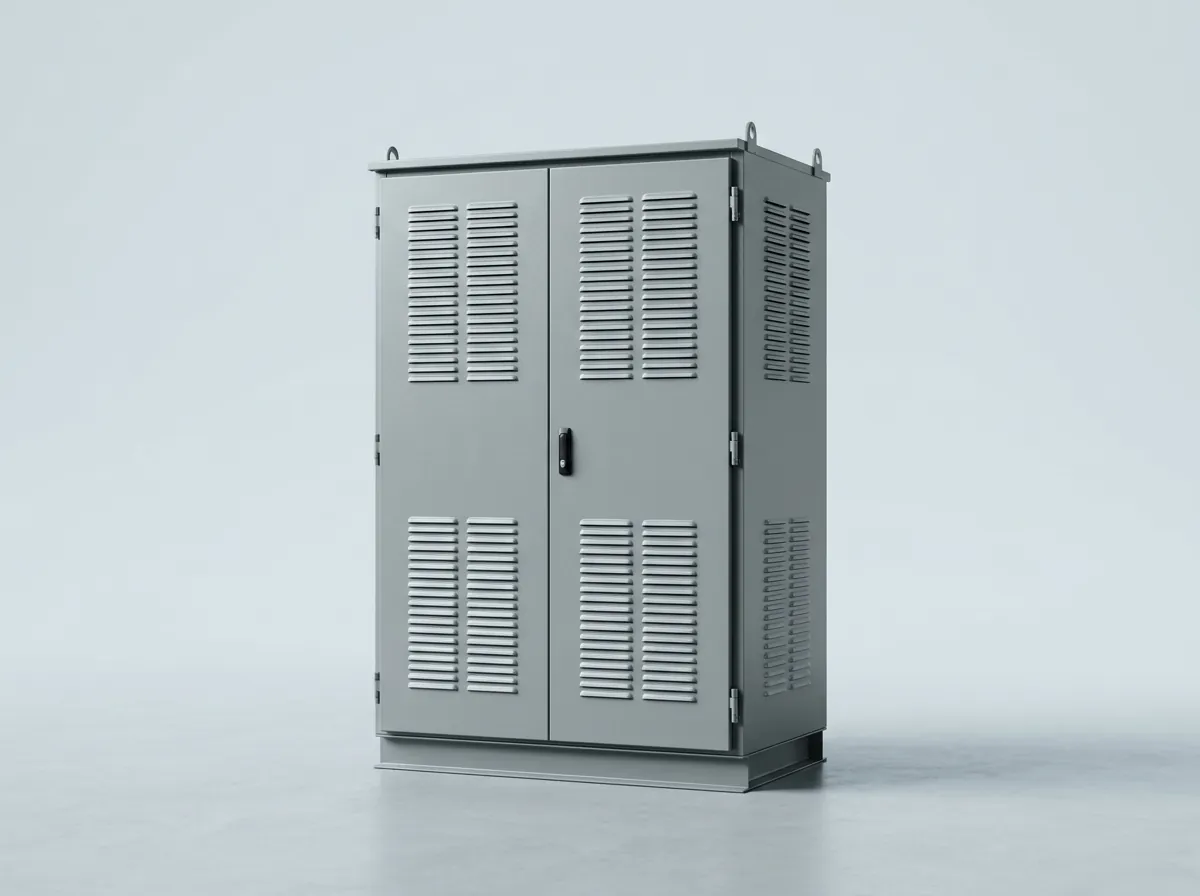

Dry-type transformer, 150 kVA, three-phase
Larger step-down unit for a full floor or a 400 amp panel.
Rating150 kVA, three-phase, 60 Hz
Voltage480 V delta to 208Y/120 V
Insulation220 C class, 150 C rise
EnclosureVentilated indoor; NEMA 3R with weather shield
Efficiency98.83 at 35 percent load (DOE 2016)
Sound50 dB max (NEMA ST 20)
ListingUL 1561
DeliveryDated to its build stage. You pay as it lands. Ships with warranty.
